Powerful, efficient, and compact.

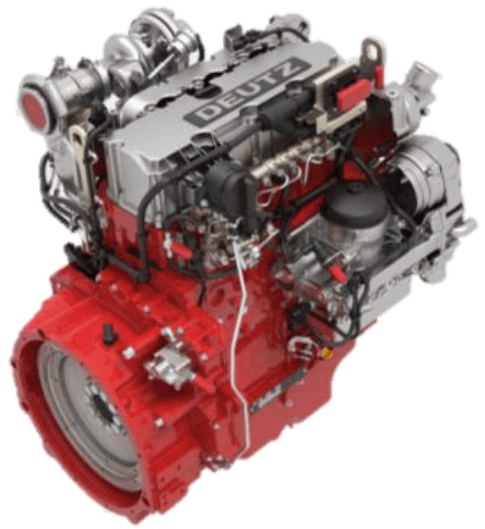

The TCD 5.2 – With 100 up to 170 kW power output, ideal for your application.
| POWERFUL | Up to 170 kW & 950 Nm |
| LOW EMISSIONS | EU Stage V, Tier 4f, CN 4 & HVO certified |
| MODULAR | Wide range of applications due to a variety of options |
| VERSATILE | EDG – Version* |
POWER / TORQUE CURVES
TECHNICAL DATA
| ENGINE TYPE | TCD 5.2 | |
|---|---|---|
| No. of Cylinders | 4 | |
| Displacement | I | 5.2 |
| Max. Nominal speed | min−1 | 2300 |
| Aspiration | Turbocharger with charge air cooler | |
| Power Output acc. ISO 14396 | kW | 100 - 170 |
| At Speed | min−1 | 1800 - 2300 |
| Max. Torque | Nm | 950 |
| At Speed | min−1 | 1300 - 1500 |
| Min. Idling Speed | min−1 | 800 |
| Weight (DIN 70020 Part 7A) | kg | 596 |
DIMENSIONS
| ENGINE TYPE | A | B | C | DOC/DPF (D) | DOC/DPF (L) | SCR (D) | SCR (L) | DOC/DPF | SCR | |
|---|---|---|---|---|---|---|---|---|---|---|
| TCD 5.2 | mm | 949 | 753 | 973 | 318 | 640 | 289 | 635 | 🔴 🟥 | 🔴 🟥 |
