Powerful, efficient, and compact.

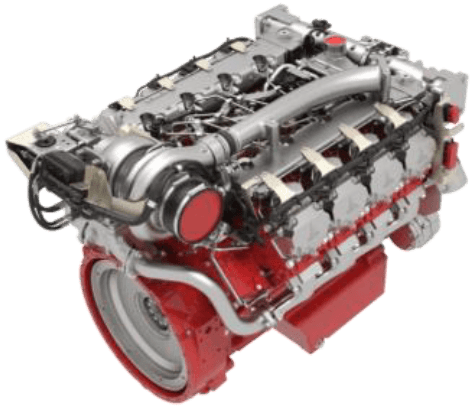

The DEUTZ TCD 16.0 – With 350 up to 520 kW Power Output, ideal for your Application.
| POWERFUL | Up to 520 kW & 2890 Nm |
| LOW EMISSIONS | EU Stage V, Tier 4f, CN 4 & HVO certified |
| MODULAR | Wide range of applications due to a variety of options |
| VERSATILE | Flat compact version available |
| POWERPACK | Modular, compact & ready for installation |
POWER / TORQUE CURVES
TECHNICAL DATA
| ENGINE TYPE | TCD 16.0 | |
|---|---|---|
| No. of Cylinders | 8 | |
| Displacement | I | 15.874 |
| Max. Nominal speed | min−1 | 2100 |
| Aspiration | Turbocharger with charge air cooler | |
| Power Output acc. ISO 14396 | kW | 350 - 520 |
| At Speed | min−1 | 2100 |
| Max. Torque | Nm | 2890 |
| At Speed | min−1 | 1400 |
| Min. Idling Speed | min−1 | 1000 |
| Weight (DIN 70020 Part 7A) | kg | 1260 |

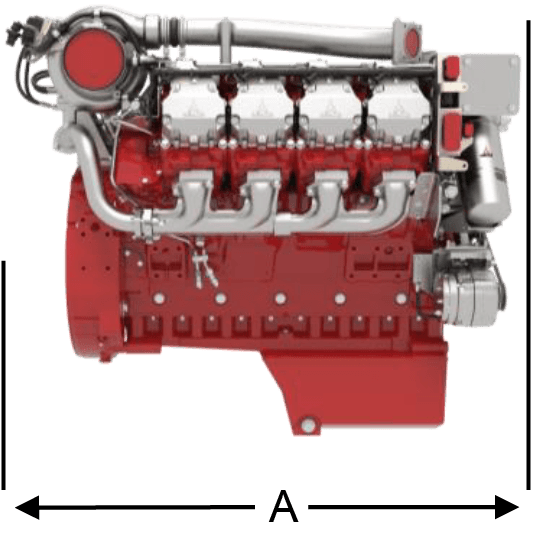

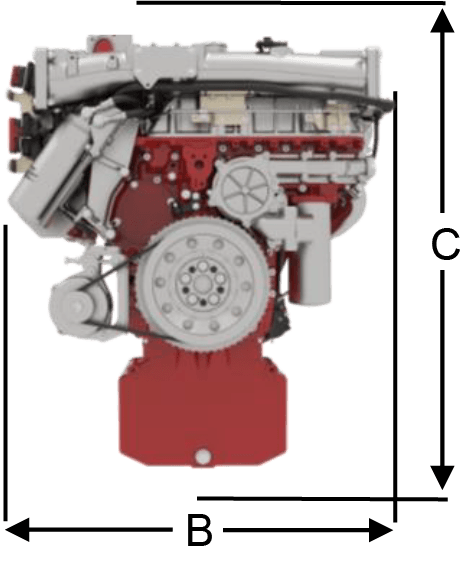

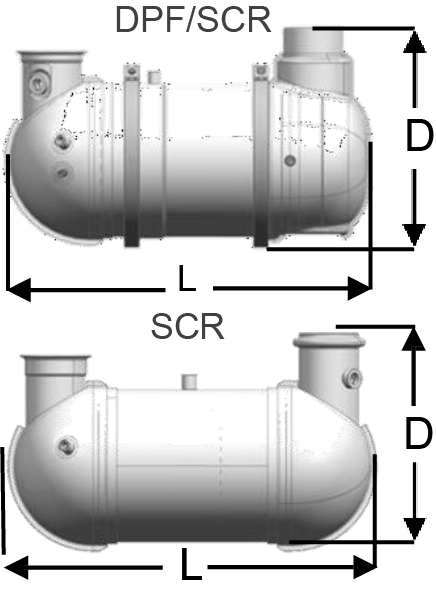

DIMENSIONS
| ENGINE TYPE | A | B | C | DPF/SCR (D) | DPF/SCR (L) | SCR (D) | SCR (L) | DPF/SCR | SCR | |
|---|---|---|---|---|---|---|---|---|---|---|
| TCD 16.0 | mm | 1359 | 948 | 1172 | 385 | 1547 | 385 | 1547 | 🔴 | 🔴 🟥 |
