Powerful, efficient, and compact.

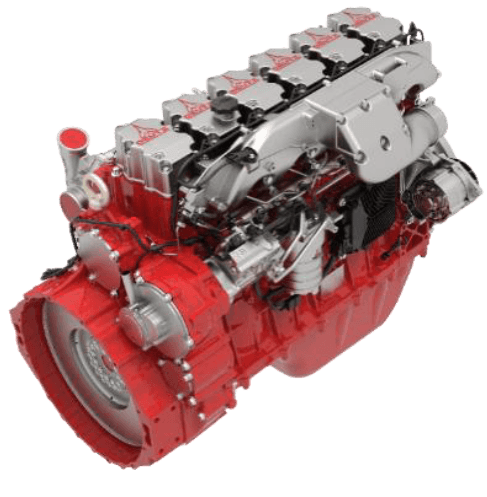

The TCD 13.5 L6 – With 338 up to 454 kW power output, ideal for your application.
| POWERFUL | Up to 454 kW & 2757 Nm |
| LOW EMISSIONS | EU Stage V & Tier 4f certified |
| MODULAR | Wide range of applications due to a variety of options |
| VERSATILE | EDG – Version* (Stage IIIA & Tier 0) |
| POWERPACK | Modular, compact & ready for installation |
POWER / TORQUE CURVES
TECHNICAL DATA
| ENGINE TYPE | TCD 13.5 L6 | |
|---|---|---|
| No. of Cylinders | 6 | |
| Displacement | I | 13.5 |
| Max. Nominal speed | min−1 | 2300 |
| Aspiration | Turbocharger with charge air cooler | |
| Power Output acc. ISO 14396 | kW | 338 - 454 |
| At Speed | min−1 | 1700 - 2100 |
| Max. Torque | Nm | 2757 |
| At Speed | min−1 | 1100 - 1500 |
| Min. Idling Speed | min−1 | 800 |
| Weight (DIN 70020 Part 7A) | kg | 1012 |
DIMENSIONS
| ENGINE TYPE | A | B | C | DOC + DPF/SCR (D) | DOC + DPF/SCR (L) | SCR (D) | SCR (L) | DOC + DPF/ SCR | SCR | |
|---|---|---|---|---|---|---|---|---|---|---|
| TCD 13.5 L6 | mm | 1378 | 852 | 1161 | 806 | 1312 | 361 | 1379 | 🔴 | 🟥 |
