Powerful, efficient, and compact.

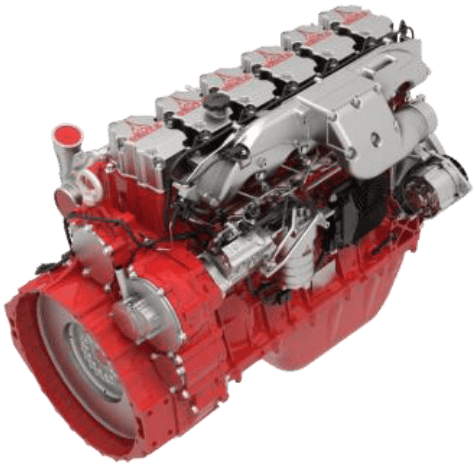

The TCD 12.0 L6 – With 300 up to 403 kW power output, ideal for your application.
| POWERFUL | Up to 403 kW & 2505 Nm |
| LOW EMISSIONS | EU Stage V, Tier 4f |
| MODULAR | Wide range of applications due to a variety of options |
| VERSATILE | EDG – Version* (Stage IIIA, Tier 0) |
| POWERPACK | Modular, compact & ready for installation |
POWER / TORQUE CURVES
TECHNICAL DATA
| ENGINE TYPE | TCD 12.0 L6 | |
|---|---|---|
| No. of Cylinders | 6 | |
| Displacement | I | 12.0 |
| Max. Nominal speed | min−1 | 2300 |
| Aspiration | Turbocharger with charge air cooler | |
| Power Output acc. ISO 14396 | kW | 300 - 400 |
| At Speed | min−1 | 1700 - 2100 |
| Max. Torque | Nm | 2505 |
| At Speed | min−1 | 1200 - 1400 |
| Min. Idling Speed | min−1 | 800 |
| Weight (DIN 70020 Part 7A) | kg | 1005 |
DIMENSIONS
| ENGINE TYPE | A | B | C | DOC/DPF (D) | DOC/DPF (L) | SCR (D) | SCR (L) | DOC/DPF + SCR | SCR | |
|---|---|---|---|---|---|---|---|---|---|---|
| TCD 12.0 L6 | mm | 1378 | 852 | 1161 | 806 | 1312 | 360 | 1377 | 🔴 | 🟥 |
